Objectives
To display AutoCAD drawings of the shelter in the
CAVE
to gain a feel for the size and dimensions of the structure
To display finite element models created in ANSYS in the
CAVE
to determine if the deflections occurring under loading are at a "comfortable" level.

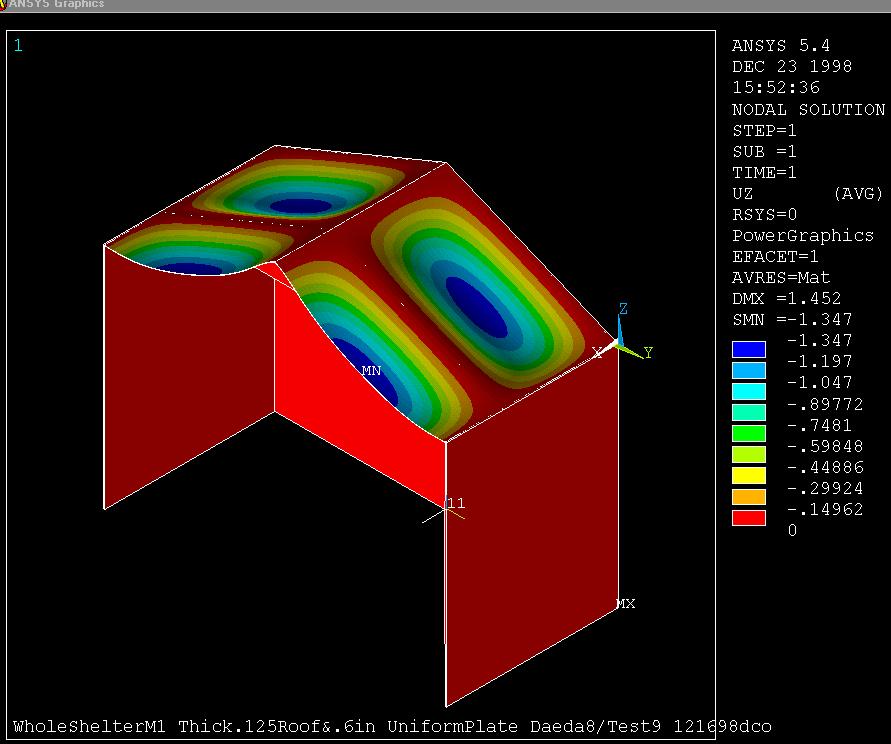

Figure 2 shows an example of the type of image that will be used.
Figure 2: Shelter deflection created in ANSYS
