Slide#3

UVAG Space: Five Regions

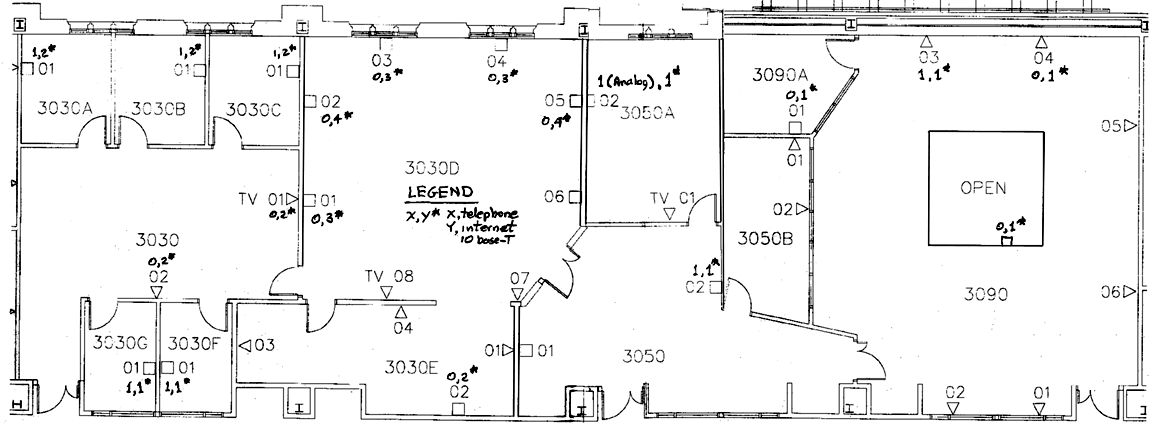

Layout of Network and Telephone connections

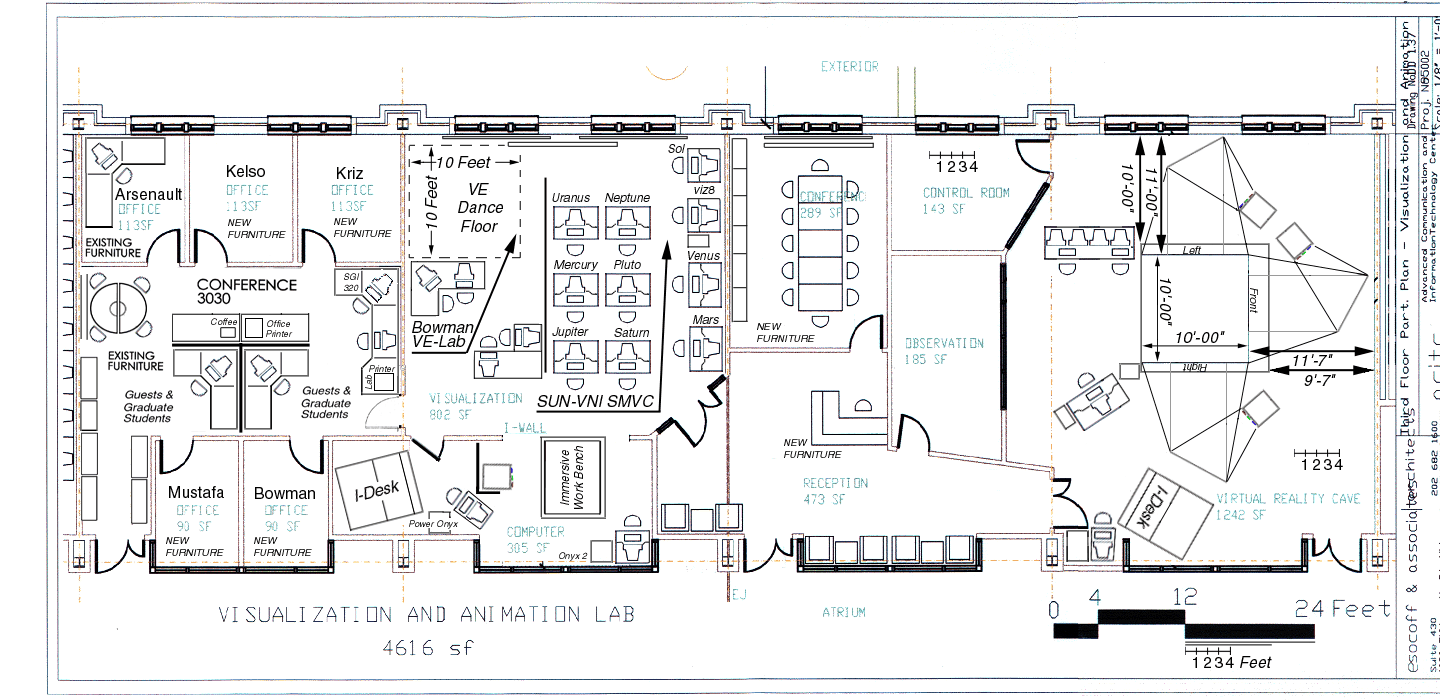

Large Format Plan

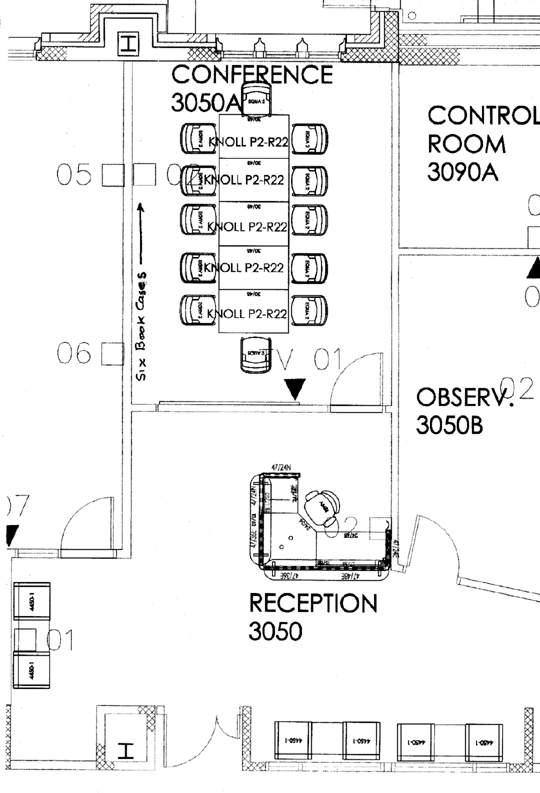

  1. Entrance Reception area: "The-Hub"
  2. Conference room: Furniture for Reception & Conference Room
  3. CAVE and CAVE viewing room
  4. "VE-Viz Lab": SMVC (SUN-VNI), VE-Lavb
    • 8-SUN Sparc 20s, 1-Octanes, 1-I-Desk, 1-Immersive Work Bench,
    • Doug Bowman's HMD's, 2-SGI Workstations, and 2-PCs
    • I-Wall (pending)

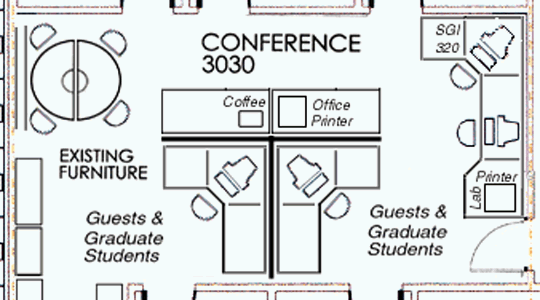

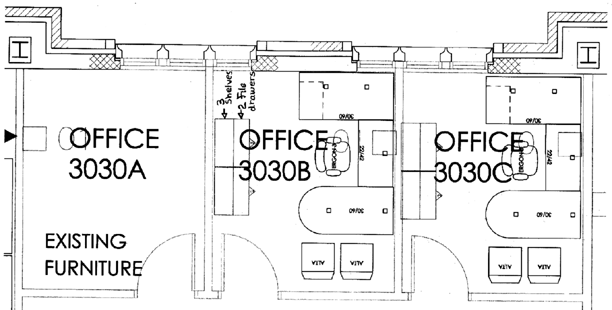

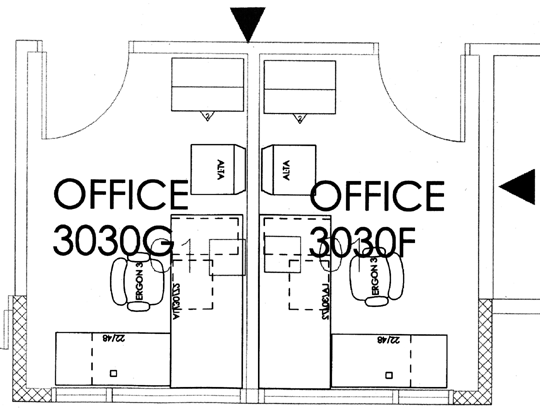

  5. Staff Offices: Furniture: Larger offices, Smaller offices, Guest area
