Your Visual Library!

ANALYTICAL

FATIGUE
by Kelly
All images scanned by T. Schmierer

Click for larger image
Visual example of axial stress

Click for larger image
Visual example of torsional stress

Click for larger image
Visual example of flexural stress

Click for larger image

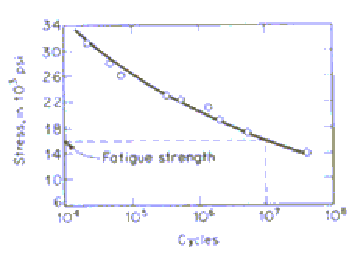

An S-N plot for an aluminum alloy

Click for larger image
A diagram showing location of the three steps in a fatigue fracture under axial stress

Click for larger image
A diagram showing the surface of a fatigue fracture.
The rough surface indicates brittle failure, while the smooth surface represents crack propagation

Click for larger image
An example of beachmarks or "clamshell pattern" associated with stress cycles that vary in magnitude and time as in factory machinery

Click for larger image
An example of the striations found in fatigue fracture.

Equation 1

Equation 2

Equation 3

Equation 4

Click for larger image
A case hardened steel gear

Click for larger image
Example of pits formed by corrosion on the surface of LiF



STRESS INTENSITY
by Kim
Click for larger image
Schematic representations of
(a) an interior crack in a plate of infinite width, and
(b) an edge crack in a in a plate of semi-infinite width

Click for larger image
Schematic representation showing the effect of plate thickness on fracture toughness

Click for larger image
Basic modes of loading involving different crack surface displacements

Click for larger image
Graph showing distribution of stresses in vicinity of crack tip

Click for larger image
Picture of the Liberty Bell



STRESS CONCENTRATION
by Noble
All images scanned by T. Schmierer

Click for larger image
Diagram showing
(a)The geometry of surface and internal cracks.
(b) Schematic stress profile along the line X-X' in (a),
demonstrating stress amplification at crack tip positions

Equation 1

Equation 2

Click for larger image
Diagrams showing stress concentration factor plots for three different macroscopic flaw situations



ENERGY METHODS
by Yue
All images scanned by M. Gallagher

Click for larger image
Diagram of a plate with a crack growing with an applied stress

Click for larger image
Fractograph of ductile cast iron showing a transgranular fracture surface

Click for larger image
Fractograph of an intergranular fracture surface

Click for larger image
Three modes of crack surface displacements

Click for larger image
A cracked body with a force (F) and (a) is the crack length

Click for larger image
A graph of the increase of growth rate with crack size

Click for larger image
Illustration of Charpy and Izod Impact Tests

Click for larger image
A graph of the temperature dependence on the Charpy V-notch impact energy
(curve A) and percent shear fracture (curve B)



NUMERICAL

THEORY
by Midkiff
All images scanned by J. Midkiff

Click for larger image
Structure of a three-member truss

Click for larger image
Single truss member

Equation 1

Equation 2

Click for larger image
Force diagram of single truss member

Equation 3

Equation 4

Equation 5

Click for larger image
Three member truss

Click for larger image
diagram showing displacements and external forces
on a three member truss

Equation 6

Equation 7

Equation 8

Click for larger image
Nodal forces on a three member truss

Equation 9

Equation 10

Equation 11



EXAMPLES
by Schultz
All images preprocessed in Patran and processed in
Abaqus by J. Schultz on an ESM workstation

Click for larger image
FEA results of stresses in a plate with an elliptical crack

Click for larger image
FEA results of stresses in a plate with an elliptical crack

Click for larger image
FEA results of stresses in a plate with a circular crack

Click for larger image
Mesh with boundary conditions for one of the models

Click for larger image
Geometry of FEA drawn in Autocad

SIMPLE COMPUTER PROBLEM
by Tingler
All images scanned by T. Schmierer

Equation 8.1

Equation 8.2

Equation 8.5 a,b,c

Equation 8.6

Equation 8.7

Equation 8.8

Equation 8.9

Equation 8.10



HISTORY/INTRODUCTION
by Widas
Click for larger image
Figure 1 from http://www.noraneng.com

Click for larger image
Mesh diagram of a van

Click for larger image
Figure 3 from http://umass.edu/mie/labs/mda/fea/fealib/goldstein/PROJECT.html

Click for larger image
Non-linear model of a bicycle frame

Click for larger image
Fatigue analysis of a train



EXPERIMENTAL

DUCTILE FRACTURE
by Bailey
All images scanned by T. Schmierer

Click for larger image
A tensile stess-strain curve

Click for larger image
A scanning electron fractograph of ductile cast iron, examining a transgranular fracture surface

Click for larger image
Figure showing the macroscopic differences between two ductile specimens(a,b)
and the brittle specimen (c)

Click for larger image
Figure demonstrating the microscopic qualities of ductile fracture surfaces

Click for larger image
Figure demonstrating the microscopic qualities of ductile fracture surfaces

Click for larger image
Sheared aluminium specimen showing cup and cone, and brittle fracture

Click for larger image
Graph that determines brittle to ductile transition
through an impact test for a 1018 hot-rolled steel



BRITTLE FRACTURE
by Ballard
Click for larger image
Chevron fracture surface

Click for larger image
Diagram showing intergranular fracture

Click for larger image
Radiating ridge fracture surface

Click for larger image
Diagram showing transgranular fracture



DESIGN
by Gordon
All images scanned by T. Schmierer

Click for larger image
Graph showing aluminum oxide's modulus of elasticity as a function of porosity

Click for larger image
Graph showingaluminum oxide's modulus of rupture as a function of porosity

Click for larger image
Diagram of a ceramic material before sintering

Click for larger image
Diagram of a ceramic material during sintering

Click for larger image
Diagram of a ceramic material after sintering

Equation showing the minimum fiber length for a continuous fiber composite

Equation showing the tensile strength of a discontinous
fiber composite with fiber length greater than lc

Equation showing the tensile strength of a discontinous
fiber composite with fiber length less than lc

Click for larger image
Figure showing the tenile and compressive stress on tempered glass

Equation for factor of safety

Click for larger image
A poor design that will create a stree concentration

Click for larger image
A good design that will minimise stress concentration

Equation for the minimum thickness of material before plane strain behavior occurs

Equation for the fracture toughness of a material with a thickness less than B

Equation for the fracture toughness of a material with a thickness equal to or greater than B;
when it fractures in mode I

Equation for the critical applied stress required to cause failure in a material

Equation for the critical crack length required to cause failure in a material

Click for larger image
Diagram of a mode I fracture

Click for larger image
Diagram of a mode II fracture

Click for larger image
Diagram of a mode III fracture

Click for larger image
Graph showing composite performance in relation to stress alignment



FRACTOGRAPHY
by Halahan and Mutter
Click for larger image
Stainless steel showing transgranular cleavage
Scanned by M. Gallagher

Click for larger image
TiB2 showing cleavage
Scanned by M. Gallager

Click for larger image
Ni base alloy showing cleavage
Scanned by M. Gallagher

Click for larger image
Silicon carbide showing small cleavage
Scanned by M. Gallagher

Click for larger image
Obvious decohesion
Scanned by R. Halahan

Click for larger image
Stainless steel showing hydrogen embrittlement
Scanned by R. Halahan

Click for larger image
Stainless steel showing decohesive rupture
Scanned by M. Gallagher

Click for larger image
Carbon-Magnesium steel showing stress corrosion cracking
Scanned by M. Gallagher

Click for larger image
Low carbon steel with a layer of oxide
Scanned by R. Halahan

Click for larger image
Gray cast iron with sulfate deposites
Scanned by R. Halahan

Click for larger image
Nickel based alloy with fatigue striations
Scanned by M. Gallagher

Click for larger image
Enlarged picture of fatig1.jpg
Scanned by M. Gallagher

Click for larger image
Nickel based alloy with jagged fatigue striations
Scanned by M. Gallagher

Click for larger image
Titanium alloy with fatigue striations
Scanned by M. Gallagher

Click for larger image
High carbon steel with an elongated dimple
Scanned by M. Gallagher

Click for larger image
AISI 10B21 Steel with well defined microvoid coalescence
Scanned by M. Gallagher

Click for larger image
Aluminum alloy with microvoids
Scanned by M. Gallagher

Click for larger image
Titanium alloy with equiaxed and elongated dimples
Scanned by M. Gallagher

Click for larger image
Nitralloy 135 M with microvoid coalescence
Scanned by M. Gallagher



FRACTURE TOUGHNESS
by McMurtry
Click for larger image
A specimen with an internal crack

Click for larger image
A specimen with a through-thickness crack

Click for larger image
A specimen with a half circle surface crack

Click for larger image
A fracture toughness vs. thickness graph

Click for larger image
Three modes of crack surface displacement

Click for larger image
Two ASTM standard compact specimen of different b sizes

Click for larger image
Graph of fracture toughness vs. temperature for different steels

Click for larger image
A graph of fracture toughness vs. temperature for various strain rates
applied to A572 steel



EXPERIMENTAL FATIGUE
by Meyer
All images scanned by C. Meyer

Click for larger image
Fracture appearances of fatigue failures in bending

Click for larger image
Typical fatigue zone with identifying marks

Click for larger image
Graph showing the effect of hardness on the fatigue life
of threads rolled before and after heat treatment

Click for larger image
Graph of bending fatigue test results on sections from crankshafts:
endurance limit versus surface treatment

Click for larger image
Typical fatigue life curve

Click for larger image
Bending angle guide

Click for larger image
Graph of experimental data: angle vs. cycles to failure

Click for larger image
Graph of crack growth rates obtained from adjacent pairs of a vs. N data points

Click for larger image
figure showing completely reversed controlled strain test and
two possible stress responses, namely cycle-dependent
hardening and softening

Click for larger image
Diagram of a stable stress-strain hysteresis loop

Click for larger image
Elastic, plastic, and total strain vs. Life curves

Click for larger image
A tension fatigue failure of a helicopter rotor blade flapping link



MOVIES
by Luszcz and Mix

cyclic.mpgand cyclic2.mpg
Fracture of a Hercules Graphite fiber/vinyl ester matrix composite resulting from a completely reversed load
controlled fatigue test
(performed by Nikhil Verghese - Tech graduate student)

brittle.mpg
shows brittle fracture of a class 20 gray iron sample resulting from a constant strain tensile test (performed by J. Luszcz and J. Mix)

ductile.mpg
shows ductile fracture of a 4 wt% Cu in Al sample resulting from a constant strain tensile test (performed by J. Luszcz and J. Mix)

shows resulting fractures of gray iron (brittle fracture, round specimen), 4 wt% Cu in Al (ductile fracture, flat specimen), and polyethylene (extremely ductile fracture, white specimen) (taken by J. Luszcz and J. Mix)


http://www.eng.vt.edu/eng/materials/classes/MSE2094_NoteBook/97ClassProj/visual/piclibrary.html
Maintained by Benjamin Liptak
Last Updated 4/30/97
